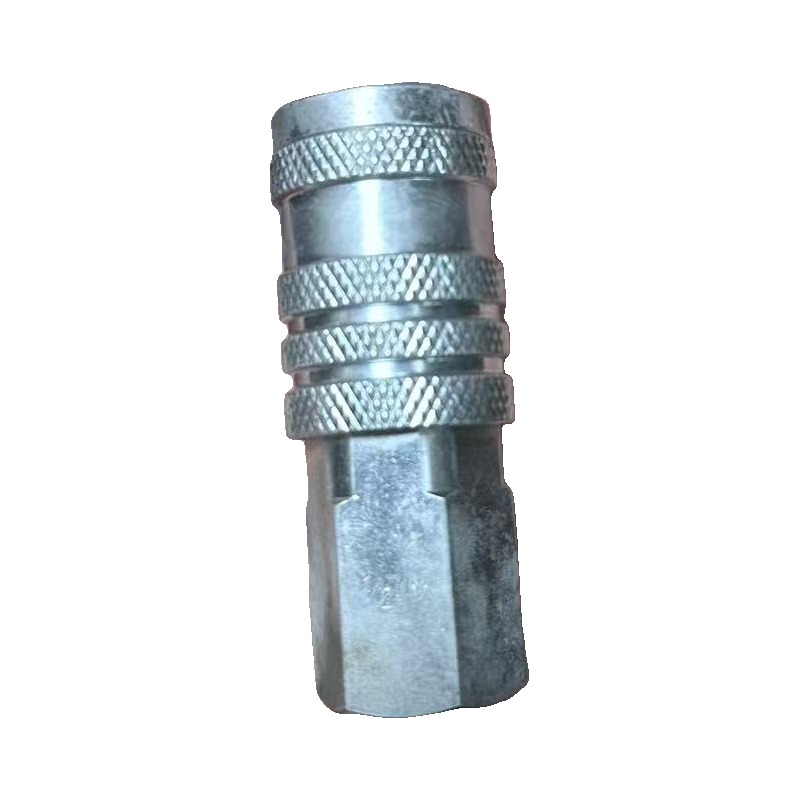

High-flow quick couplers with an oversized bore for maximum air delivery at minimum pressure drop — built for sandblasting, large spray guns and continuous-duty tools.
Specifications
| Bore | Oversized for high CFM |
|---|---|
| Material | Brass / steel |
| Working pressure | Up to 1.6 MPa (230 PSI) |
| Profile | Euro / ARO / custom |
| Thread | NPT / BSP |
| Use | High-demand air tools |
Selection Parameters
Typical operating ranges for this family — exact values are confirmed on the drawing / TDS before production.
| Thread | NPT / BSP |
|---|---|
| Material | Brass / steel |
| Working pressure | Up to 1.6 MPa (230 PSI) |
| Flow rate | 35 – 90 CFM (by profile / bore) |
| Temperature | -20 °C to +120 °C |
MOQ1000 pcs / item (mixed-SKU accepted)
CertificationNone yet (CE / ISO 9001 available on request)
Sample lead time3 – 5 days
Typical Applications
- Sandblasting
- Large HVLP guns
- Continuous-duty tools
- Foundry & body shops
